Plastic towline for cnc machine tool
Product Description

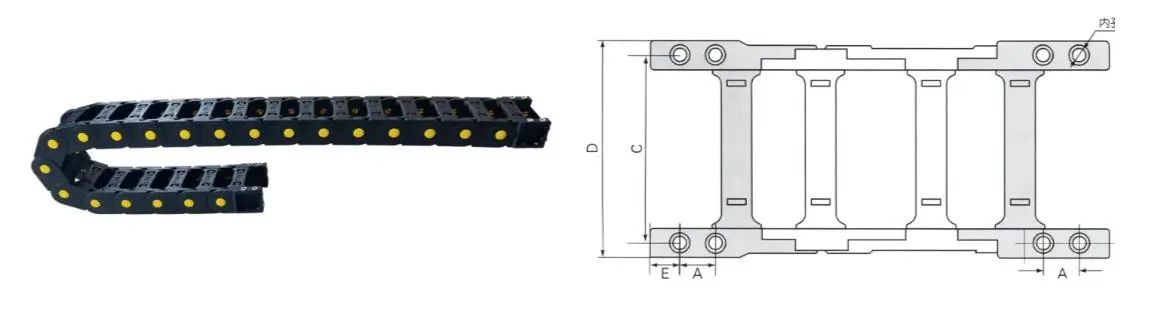

Specification
Inner diameter |
Outside diameter |
Bridge |
Closed |
Radius (mm) |
Spacer |
distance |
structure |
|
|
20 series |
20*30 |
28*45 |
√ |
|
50 |
|
38 |
Open inside |
20*40 |
28*55 |
√ |
|
45 |
|
|||
20*40 |
35*57 |
√ |
√ |
55 75 100 125 |
|
47 |
Four pieces, with yellow buttons on both sides |
|
20*50 |
35*67 |
√ |
√ |
|
||||
20*57 |
35*74 |
√ |
√ |
|
||||
20*65 |
35*82 |
√ |
√ |
|
||||
20*75 |
35*92 |
√ |
√ |
|
||||
20*85 |
35*102 |
√ |
|
|
||||
20*100 |
35*117 |
√ |
|
|
||||
25 series A type |
25*38 |
40*58 |
√ |
√ |
55 75 100 125 150 |
Can be added |
49 |
Four pieces, with yellow buttons on both sides |
25*50 |
40*70 |
√ |
√ |
|||||
25*57 |
40*77 |
√ |
√ |
|||||
25*77 |
40*97 |
√ |
√ |
|||||
25*103 |
40*123 |
√ |
√ |
|||||
25 series B type |
25*40 |
40*60 |
√ |
√ |
55 75 100 125 150 |
|
47 |
Four pieces, with yellow buttons on both sides |
25*50 |
40*70 |
√ |
√ |
|
||||
25*57 |
40*77 |
√ |
√ |
|
||||
25*65 |
40*85 |
√ |
√ |
|
||||
25*75 |
40*95 |
√ |
√ |
|
||||
25*85 |
40*105 |
√ |
|
|
||||
25*100 |
40*120 |
√ |
|
|
Inner diameter |
Outside diameter |
Bridge |
Closed |
Radius (mm) |
Spacer |
distance |
structure |
|
30 series |
30*40 |
45*62 |
√ |
√ |
75 100 125 150 |
Can be added |
47 |
Four pieces, with yellow buttons on both sides |
30*50 |
45*72 |
√ |
√ |
|||||
30*57 |
45*79 |
√ |
√ |
|||||
30*65 |
45*87 |
√ |
√ |
|||||
30*75 |
45*97 |
√ |
√ |
|||||
30*85 |
45*107 |
√ |
|
|||||
30*100 |
45*122 |
√ |
|
|||||
35 Series A Type |
35*50 |
55*80 |
√ |
√ |
75 100 125 150 200 250 300 |
Can be added |
58 |
Four pieces, with yellow buttons on both sides |
35*56 |
55*86 |
|
√ |
|||||
35*60 |
55*90 |
|
√ |
|||||
35*65 |
55*95 |
√ |
√ |
|||||
35*75 |
55*105 |
√ |
√ |
|||||
35*100 |
55*130 |
√ |
√ |
|||||
35*125 |
55*155 |
√ |
√ |
|||||
35*150 |
55*180 |
√ |
√ |
|||||
35*175 |
55*205 |
√ |
|
|||||
35*200 |
55*230 |
√ |
|
|||||
|
35 Series B Type |
35*50 |
55*77 |
√ |
√ |
75 100 125 150 200 250 |
Can be added |
68 |
Four pieces, with yellow buttons on both sides |
35*60 |
55*87 |
√ |
√ |
|||||
35*75 |
55*102 |
√ |
√ |
|||||
35*90 |
55*117 |
√ |
|
|||||
35*100 |
55*127 |
√ |
√ |
|||||
35*125 |
55*152 |
√ |
√ |
|||||
35*150 |
55*177 |
√ |
√ |
|||||
35*175 |
55*202 |
√ |
|
|||||
35*200 |
55*227 |
√ |
|
|||||
35*250 |
55*277 |
√ |
|
|||||
|
|
√ |
|
Core advantages
● Lightweight and flexibility: Compared with metal drag chains, plastic materials are lighter and suitable for high-speed, high-frequency reciprocating motion.
● Environmental resistance: oil-resistant, acid-resistant and alkali-resistant (such as nylon), adaptable to harsh working conditions.
● Modular design: customizable length and bending radius to adapt to different equipment layouts.
● Low maintenance cost: The open cover design facilitates quick maintenance or replacement of internal pipelines.
As the "blood vessel and nerve protection system" of modern industrial equipment, plastic drag chains significantly improve equipment reliability, safety and service life by optimizing pipeline management. Its application areas continue to expand with the growth of automation and precision manufacturing needs, and are especially indispensable in smart manufacturing (Industry 4.0) scenarios.
