Automatic Bevel Laser Tube Cutting Machine
Features
- Triple servo power brings efficiency to a new level; the follow-up support is controlled by three sets of independent servo motors.
2. 45-degree bevel cutting, worry-free splicing, precise craftsmanship.
3. Intelligent production, automated loading, reduced labor costs, and achieved dual innovations in efficiency and economy
Parameters
|
Name |
Parameter |
Parameter |
|
Model |
LPC-A16-C |
LPC-A16-CA |
|
Pipe diameter(maximum) |
Round tube: Φ20-Φ160；Square tube：20*20-160*160 Other tube types:≤160 |
Round tube: Φ20-Φ160；Square tube：20*20-160*160 Other tube types:≤160 |
|
Feeding pipe length |
5500-6300mm |
5500-6300mm |
|
Repeat positioning accuracy |
±0.03mm |
±0.03mm |
|
Maximum speed |
130R/min(As the tube weight increases, the motion parameters decrease accordingly) |
130R/min(As the tube weight increases, the motion parameters decrease accordingly) |
|
Acceleration |
1.2G |
1.2G |
|
Chuck load |
150KG |
150KG |
|
Machine weight |
4T |
4.5T |
|
Dimension |
9853*2880*2001 |
9853*3120*2001 |
Cutting Sample
 |
 |
 |
 |
 |
 |
 |
 |
Cutting materials: metal pipes such as carbon steel, stainless steel, aluminum, alloy steel, etc.
Applicable pipe types: automatic feeding of rectangular pipes and round pipes, while special-shaped pipes such as angle iron, channel steel, I-beam pipe, and elliptical pipe require manual feeding
Product information
|

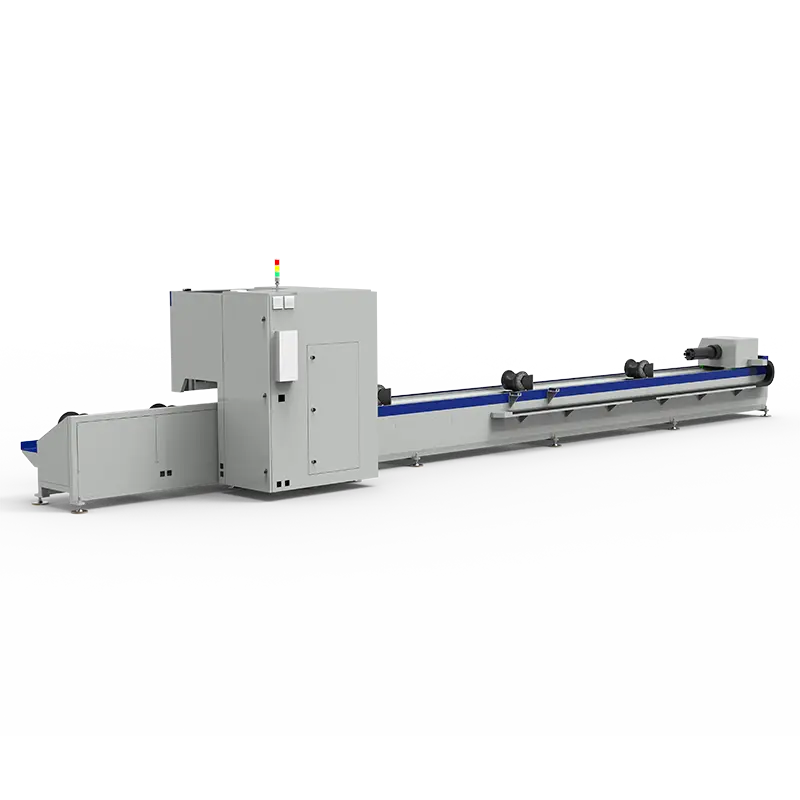

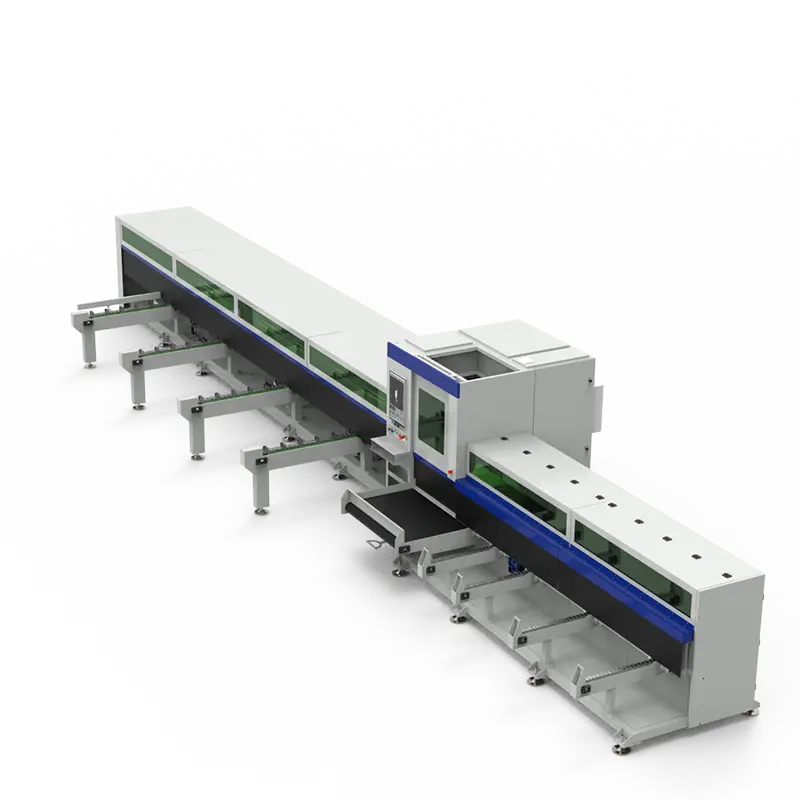

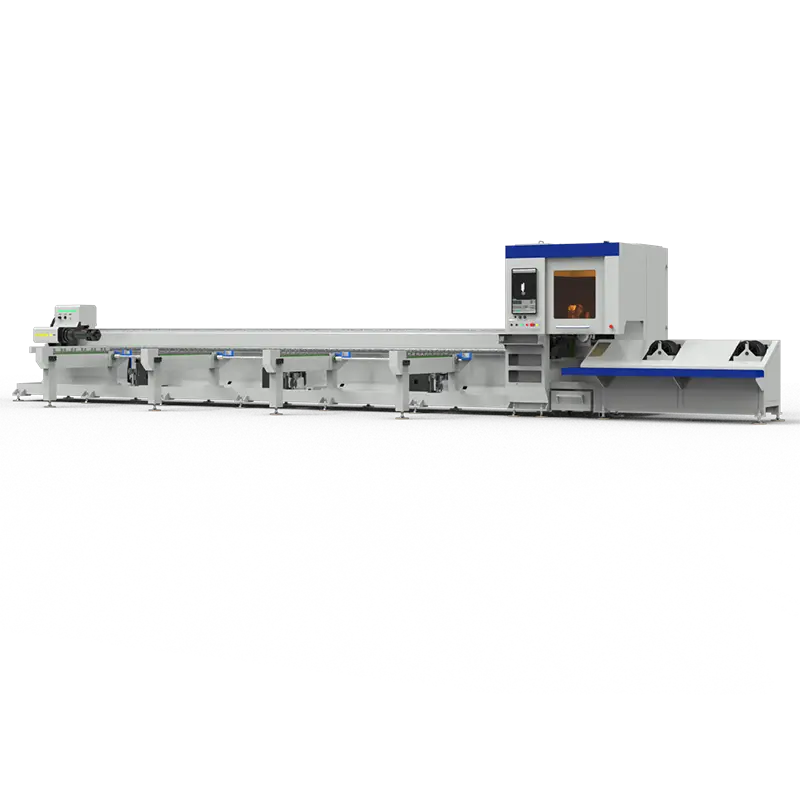

LPC-A16-C Side-mounted semi-automatic Specification: 160 diameter chuck Power: 3000W, 6000W |
 |
|
LPC-A16-CA Side-mounted fully-automatic Specification: 160 diameter chuck Power:3000W, 6000W |
 |
